Thresher Muti-Crop

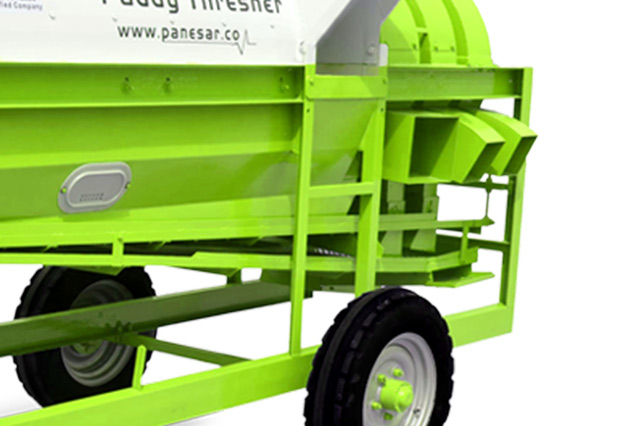

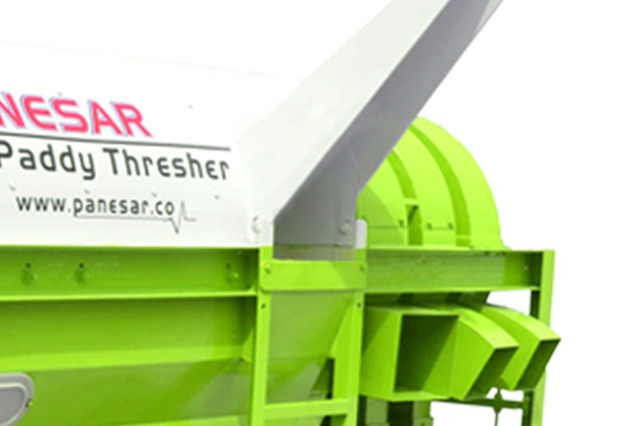

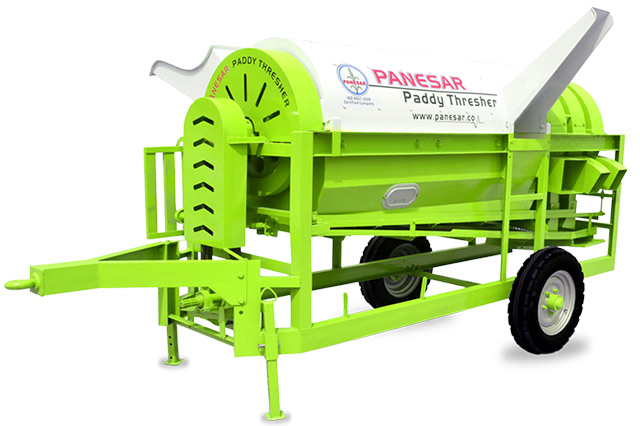

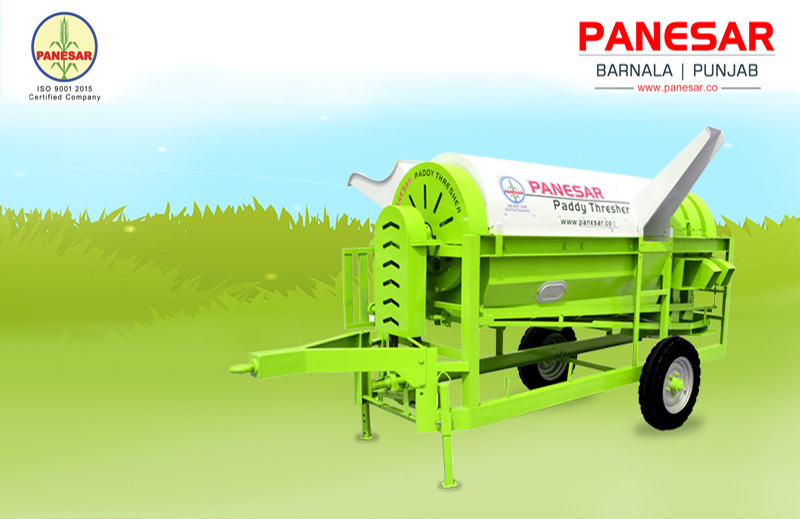

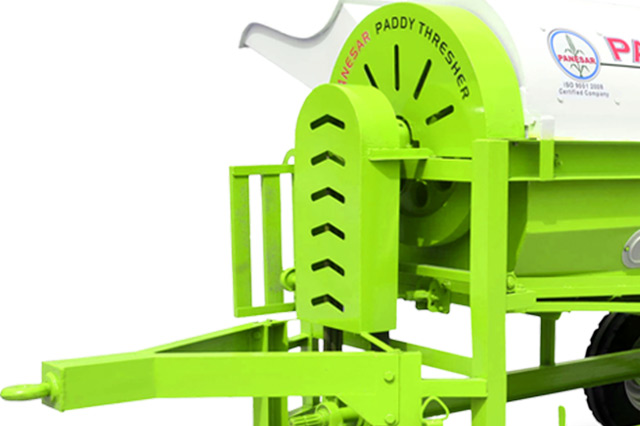

Presenting wide range of Paddy Thresher. These are manufactured by using superior quality iron sheets. These are is uniquely designed which it positively proves by not exerting extra pressure on the engines of tractors instead gives 25% more output(Paddy) in an hour in comparison to other threshers. Panesar Paddy Thresher fetches Rs 10 per 40 kg extra earnings for the farmers in compared to other grains because of its purity and quality. These are outfitted with two wheels having large radius so that it can be easily moved from one place to another.

We are a trusted name engaged in offering a broad assortment of Threshers to our clients at market leading prices.These products are demanded extensively in various industries and are appreciated for their dimensional accuracy and durable standards. Besides, our vendors understand the variegated requirements of the clients, therefore make these products available to the customers in various specifications:
• Export Quality Heavy Duty Material Used.
• High Output.
• Low Maintenance.
• Above 45 HP.
• Less Grain Breakage.
• Full Straw.
• Less Fuel Consumption.

Model	Panesar Paddy Thresher
Type	Tractor Operated
POWER UNIT
Power Requirement	45 HP or Above
Normal Speed	540
Direction of Rotation	Clockwise
CROP FEEDING SYSTEM
Method of Feeding	Manual
Size of Feeding Chute	380 x 220
FEEDING PLATFORM
Size of Platform	1383 x 220
Height of Platform	720 in Ground Level
THRESHING
Main Shaft Length	3302 mm
Size of Drum	1400 x 840
Type	Peg Tooth & Rasp Bar
No. of Peg tooths	48
No. of Peg tooth each rows	8 pc. Per Row
Size of pegs	156 x 18
Tip Diameter of cylinder	856 mm
Width of threshing cylinder	335 mm
CONCAVE
Type	Semi-circular, open
Peripheral length	1210 mm
Effective Width	515 mm
Concavity	380 mm
Size of Suqare bars	710 x 8 x 8 mm
RANGE OF CLEARANCE
Front Side	10-15 mm
Rear Side	10-15 mm
No. of sieves	Two
AXLE & WHEEL
No. of Axle	One
No. of Wheels	Two
Type of Wheels	Pneumatic Ribbed
Size	6.0 x 16.0, 8PR
OVERALL DIMENSIONS
Length	4310 mm
Width	2050 mm
Height	2585 mm
Ground Clearance	320 mm
Weight of Machine	1340 kg (approx)
