Tractor Driven Combine TDC 513 (4WD)

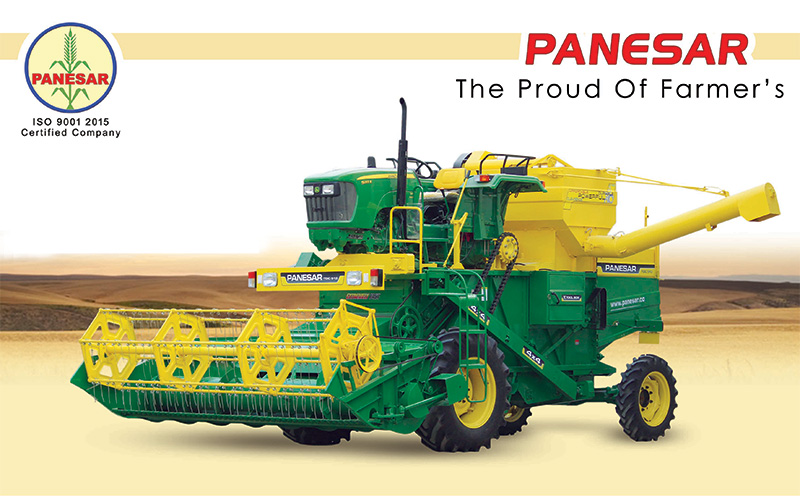

Panesar TDC 513 tractor mounted combine harvestor is one of the most powerful tool to cut the wheat and paddy 2 Acres and 1.5 Acres per hour respectively. Threshing drum width is 1235 mm and diameter of thresher drum is 600 mm. with grain tank capacity 635kg paddy. Panesar TDC 513 combine harvester approved by Govt. of India.

Model	Panesar TDC 513
Chassis	46" (1168 mm)
Power Reqd	55 HP or Above
CUTTER BAR MECHANISM
Cutter Bar Width	3581 mm
Cutting Height	55-1050 mm

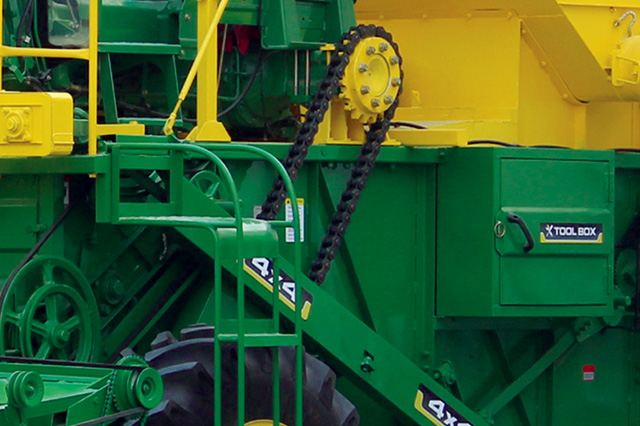

Reel Drive	Chain & Sproket
Feeder Housing	Chain Type Feed Rack
THRESHING MECHANICSM
THRESHER DRUM
Width	1235 mm
Dia of Thresher Drum	600 mm
Speed (RPM)	700-815 mm
Speed Adjustment	By means of Mechanical Aviator
Concave
Length	680
Clearance	Front 14-36mm, Rear 5-25 mm
Adjustment	Mechanical
CLEANING SIEVES
Length	1250 mm
Height	1215 mm
Effective Cleaning Area	1.519 m
Area of Extension	0.802 m
STRAW WALKER
No. of Steps	5
Length	3780 mm
Width	235 mm
CUTTING CAPACITY / HOUR
Wheat	2 Acres
Paddy	1.5 Acres
CAPACITIES

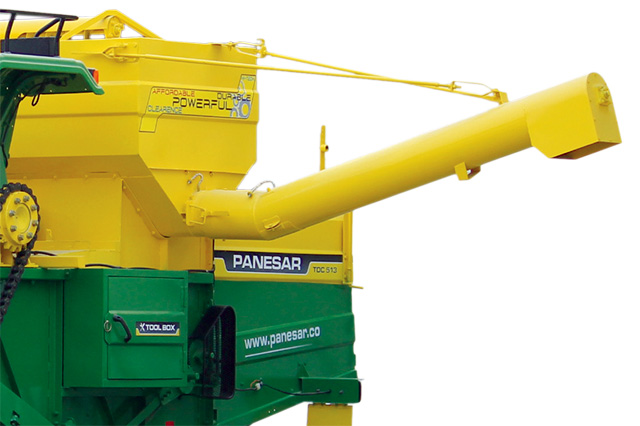

Grain Tank	635 kg Paddy
Tyre Size	7.50.16
MAIN DIMENSIONS
Length	3690
Width	1910
Height	2560 mm
Ground Clearance	430 mm
Total Weight	4800 kg. Approx
