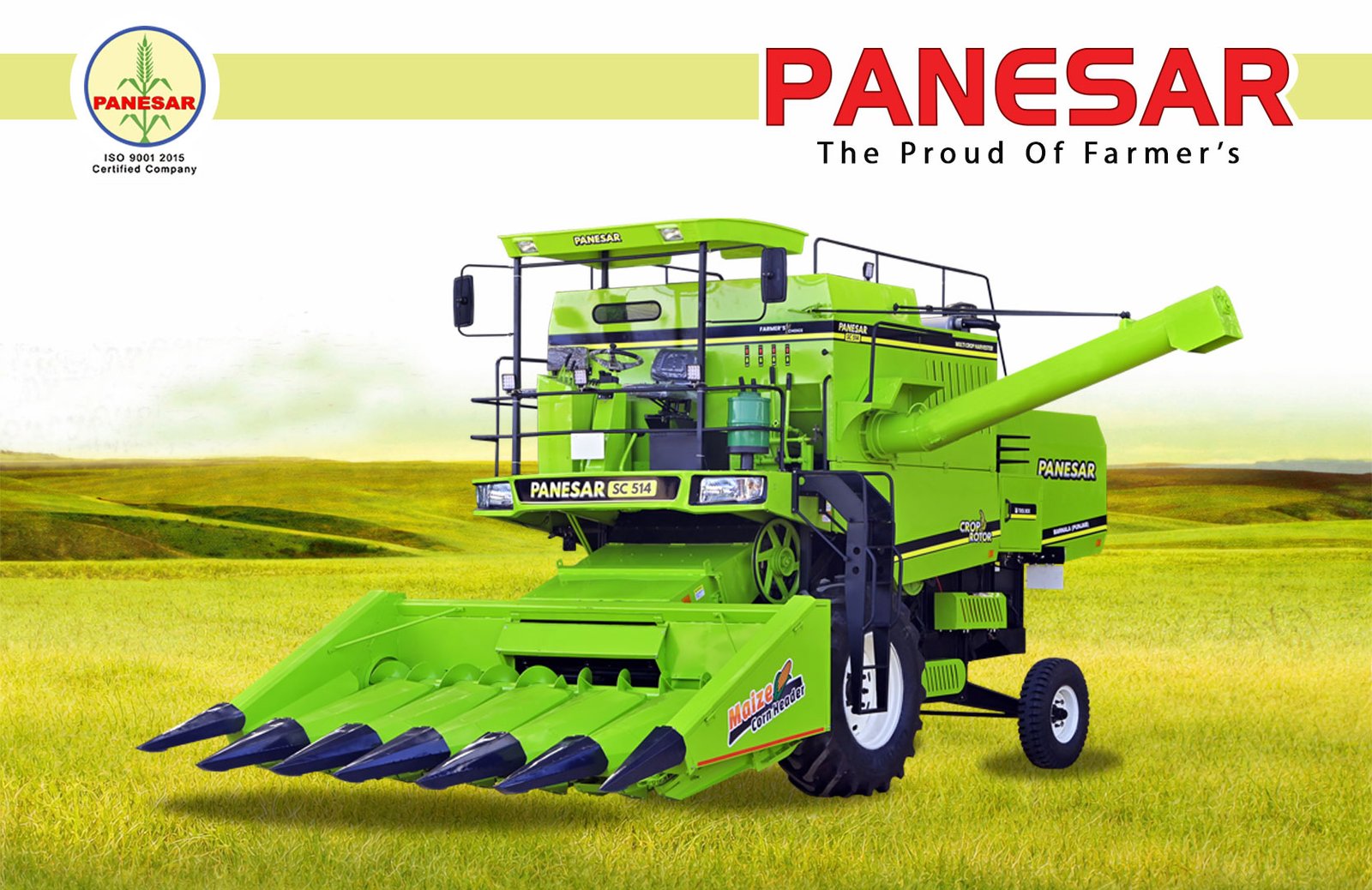

SC 514 Maize Header 2025 is built for advanced multi-crop harvesting with powerful performance, smooth crop intake, reduced grain loss, and dependable field efficiency. Designed with modern technology and a strong 133 HP engine, it delivers reliable output across demanding harvesting conditions.
SC 514 Maize Header 2025 is an advanced multi-crop harvester engineered for high productivity and excellent field performance. It is suitable for harvesting Wheat, Paddy, Maize, Soyabean, Channa, Moong, and Arhar. With low maintenance, less fuel consumption, and less grain breakage, it offers a practical and dependable solution for modern farmers.
Key Highlights:
• LED Headlights
• Low Maintenance
• Powered by 133 HP Engine
• 24x7 Service Support
• Less Grain Breakage
• Full Straw Output
• Less Fuel Consumption
| Specification | Details |
|---|---|
| MODEL | PANESAR SC 514 |
| ENGINE | Ashok Leyland |
| Power | 133 HP (BS-4) at 2200 RPM |
| No. of Cylinder | Six |
| Air Cleaner | Dry |
| Cooling System | Water Cooled |
| CLUTCH | |
| Type of Clutch | Single, Heavy Duty Dry Clutch |
| Dia (MM) | 310 |
| TRANSMISSION / DRIVE | |
| No. of Gears | 6 Forward, 2 Reverse |
| Gear Speeds (Km/hr) | |
| Forward | L / H |
| 1st Gear | 2 / 4 |
| 2nd Gear | 4 / 8 |
| 3rd Gear | 8 / 20 |
| Reverse | 4 / 8 |
| CUTTER BAR MECHANISM | |
| For Wheat, Paddy & Other | |
| Width | 4191 mm (165") |
| Cutting Height | 55-1250 mm |
| No. of Blade | 58 |
| No. of Guards | 57 |
| Stroke | 75 mm |
| No. of Reel | 26-61 mm |
| Dia of Reel | 1064 mm |
| Feeder Housing | Chain Type Feed Rack |
| THRESHING MECHANISM | W / P |
| Width (MM) | 1720 / 1230 |
| Dia of Thresher Drum (MM) | 585 / 605 |
| Speed (rpm) | 750-1020 |
| Speed Adjustment | By Means of Mechanical Aviator |
| FOR MAIZE & SUNFLOWER | |
| Width (m) | 3.0, 3.3 & 3.6 |
| No. of Rows | 5, 6, 7 & 8 |
| Spacing of Rows (mm) | 458, 558 & 610 |
| CONCAVE | |
| Front (mm) | 15-45 / 15-45 |
| Rear (mm) | 8-30 / 10-40 |
| STRAW WALKER | |
| No. of Straw Walker | 5 |
| No. of Steps | 6 |
| Length | 3850 mm |
| Width | 235 mm |
| CLEANING SIEVES | |
| Effective Cleaning Area | 1.363 m² |
| Area of Extension | 0.688 |
| CAPACITIES | |
| Grain Tank | 2.013 m³ |
| Fuel Tank | 304 Ltr |
| BATTERY | |
| No. of Battery | 2 |
| Capacity & Rating of Each | 12 V, 100 Ah |
| TYRE | |
| Front | (18.4-30) 14pr |
| Rear | (9.00-16) 12pr |
| MAIN DIMENSIONS | |
| Length (Working / Transport) | 8620 / 11820 mm |
| Width (Working / Transport) | 6390 / 3250 mm |
| Height (Working / Transport) | 4100 / 4100 mm |
| Ground Clearance | 540 mm |
| Weight | 8670 Kg |
SC 514 Maize Header 2025 is designed for dependable performance and easy maintenance in the field. With low maintenance requirements, full straw output, less grain breakage, and efficient fuel usage, it helps reduce downtime and improve harvesting productivity. Supported by 24x7 service, it ensures reliable long-term operation for farmers.
